HUAZE WIRE MESH PRODUCTS LTD LIMITED
5 Years
| Ask Lasest Price | |
| Brand Name : | HUAZE |
| Certification : | ISO9001 |
| Price : | Negotiate |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 2000 rolls a month |
| Delivery Time : | 3-5 weeks |

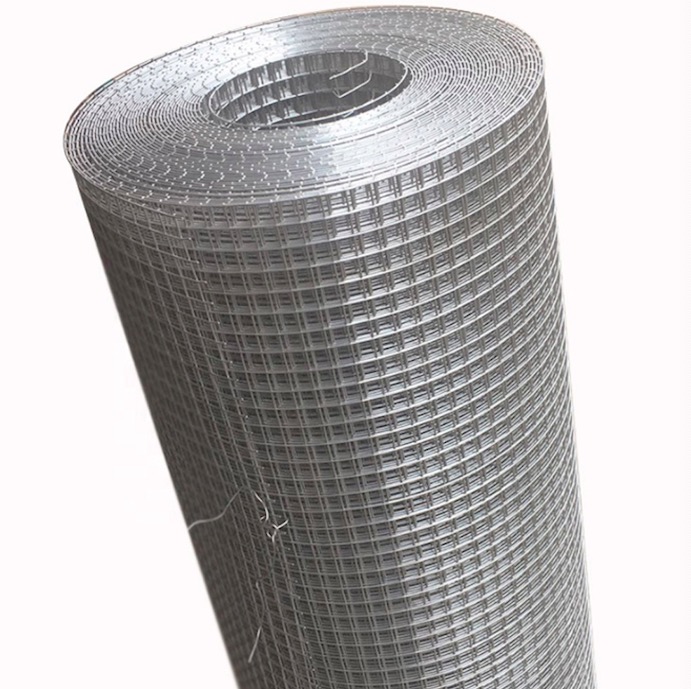

12.7mm X 12.7mm Mesh 0.90mm Wire Diameter Electro Galvanized Welded Wire Mesh 1m Wide 30m Length
The Galvanzied Welded Wire Mesh is the pre-fabricated grid designed with electro galvanized wires. It is designed by straightening and welding the high quality carbon wires together. It is widely used today just because of its fast production rate, simple and practical structure and easy to transport feature. The Welded Wire Mesh materials are welded perfectly at each interaction and this offers uniform and durable structure suitable for a variety of applications.
Specification
Specification List of Welded Wire Mesh: | ||
Opening | Wire Diameter BWG | |
In inch | In metric unit(mm) | |
1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request. | ||

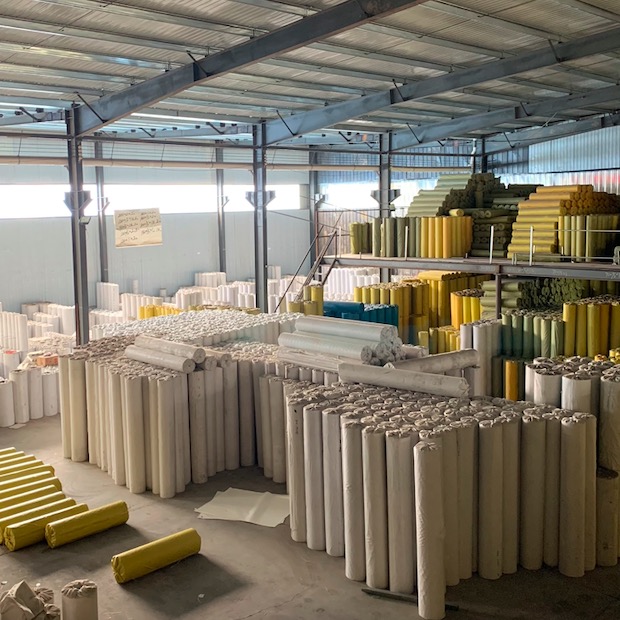

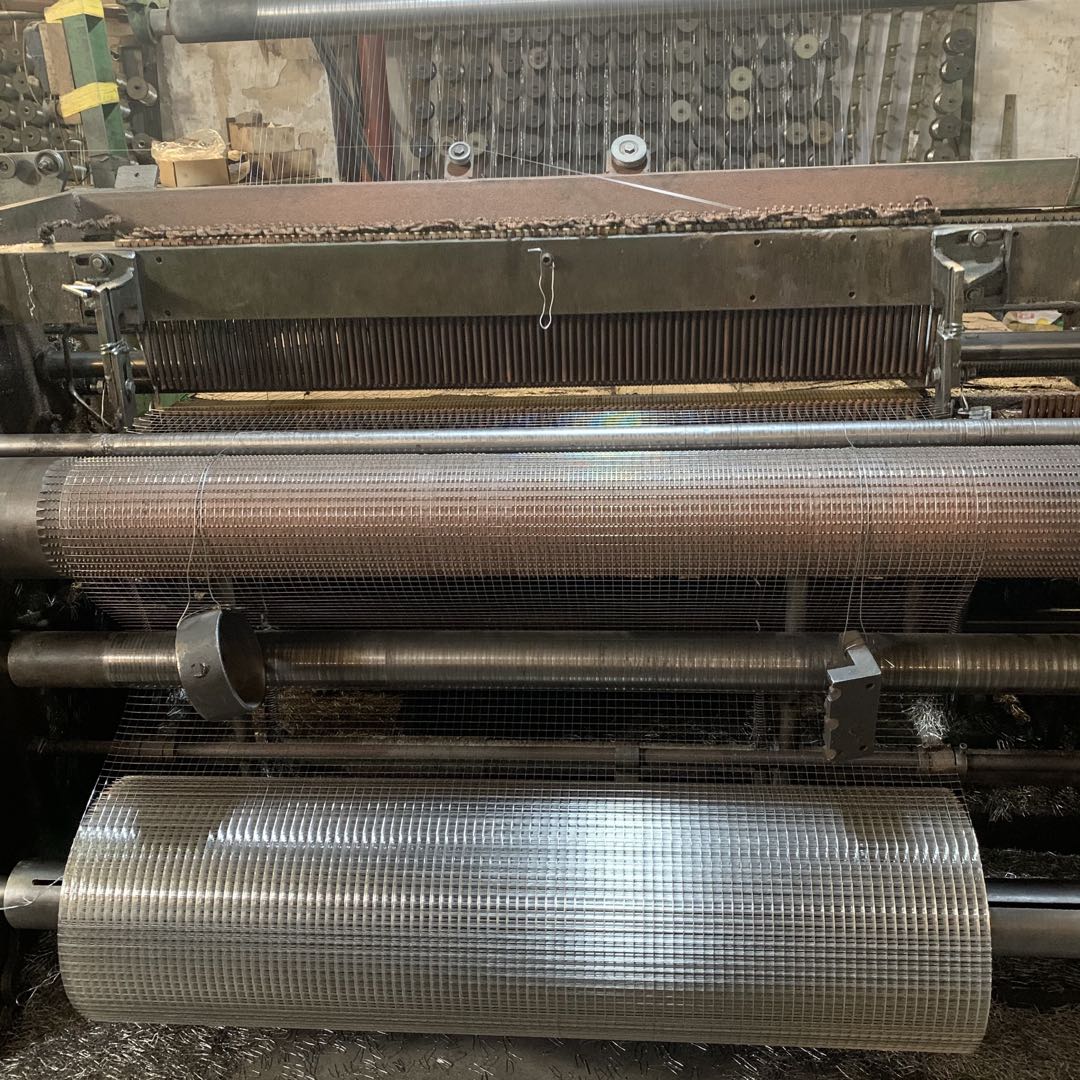

Production Details
Packing & Loading:
|
|
